FrontColour 10 On-Line Colour Meter

- New revision with a longer working distance


FrontColour (TM) is a Registered Trademark


Product's top features:

 • Used for plastics, pulp, pigments and paints, printing, papers, most solid materials

• Installed to many positions in production machines

• Simple to use, accurate readings, excellent stability

• Small size, light weight

• An integrated system, latest DSP technology is used for signal processing

• Measurement by CIE 1964 10 deg

      Illuminant: A / C / D50 / D55 / D65  / D75 selectable

      Colour system CIE L*a*b* and v', u*, v*

• Gives common colour and TAPPI Brightness variables

• One sensing head

• USB, RS232, Bluetooth for wireless operation, analog outputs 5 V (4) and 4-20 mA (1)

• Conforms to CIE 15:2004 and CIE 176:2006 requirements

• reel counter input and data handling

• integral laser pointers for aiding in accurate positioning while installing in requiring conditions. They can be used for run-time checking too in case of soft targets

Main Features

• targeted for QC, testing and research, applications in pulp, paper and board industry, textiles, felts, pigments, plastics, minerals, paints and coatings

• analyzing X, Y, Z, chromaticity coordinates x,y,z - CIE L*a*b*, v', u*, v*, Yellowness J, TAPPI brightness R457, CIE whiteness W, CIE Tint, colour difference dE* (for dL*, da*, db*), chromaticity, hue. Also a special Primary reflectance data R(lambda) is obtained (adjustable in wavelength)

• uses a CCD spectrometer as a detector for analyzing the spectra, the architecture compensates against the light source and other variations. The spectrometer resolution is about 1.6 nm. A category B device

• superior stability, based on proven technology of Visilab

• DCS interfaces for transferring the results in on-line systems

• in laboratory the FrontColour program can be used via USB/RS232/Bluetooth, all data for archival, statistics and reporting

• spot size 8.75 mm in diameter allows small-scale measurements, size dictated by standards and distance

• optics is self-calibrating continuously

• LED light source with wideband excitation of 420 - 760 nm and a separate UV excitation 390 - 420 nm is user adjustable

• operating distance: 50 mm one-headed observation

Software

• the FrontColour program allows continuous data acquisition on-line. Main configurations can be changed easily, like the illuminant. A French version is available too

• the FrontColourConfig program is used for complete configuration and setting up of the meter plus all calibrations

• The analog outputs (4) can be configured to send data of any signal to the mill DCS

Interfaces and physical properties

• analog outputs 0..5 V (4) for any output variable, 4-20 mA (1), scalable. Channel 1 is 2 Volts as it is used for the 4-20 mA as well. Gain and offset are adjustable for each

• USB for a PC directly in the box

• wireless communication via 100 meter Bluetooth, the dongle for the PC included, connected to the RS232 D9 socket and the PC USB correspondingly

• regular RS232 via cable at 9600 (max. 40 m) or 115200 (max. 5 m) via RS232/USB converter included

• operating voltage 24 V 15 W

• dimensions 120x270x270 mm, weight 3.5 kg

• IP67 enclosure for harsh environments

• power supply unit for 110 - 240 VAC mains is included. It has connectors for DCS interfaces

• the Frontcolour + FrontColourConfig is a set of programs with plenty of features, belongs to the instrument, operating in Windows 11/10/8/7 64 bit operating systems. The 32 bit version is separately available

• Mounting by four threads on the top face, for M10 or M8 bolts

Ambient conditions

• operating +5 ...+60 C with air purge

• overheating protection turns the meter to Low Power

• fully temperature compensated

• IP67 case, purge air through quick connectors

• optical windows can be cleaned if dust, a separate dust cover is available as an option

Optional accessories

• Spectralon reflectance standard, NIST traceable (recommended)

• colour standard set, NIST traceable

• wavelength calibration light source (available but not really needed)

• dust cover

• holder for wavelength calibrator

• holder for flat samples

• holder for a flat reflectance standard 52 mm in diameter. Other sizes available at time of ordering

• holder for colour tiles. Specify size when ordering


      • Maintenance Pack..



Documents:

     A Brochure

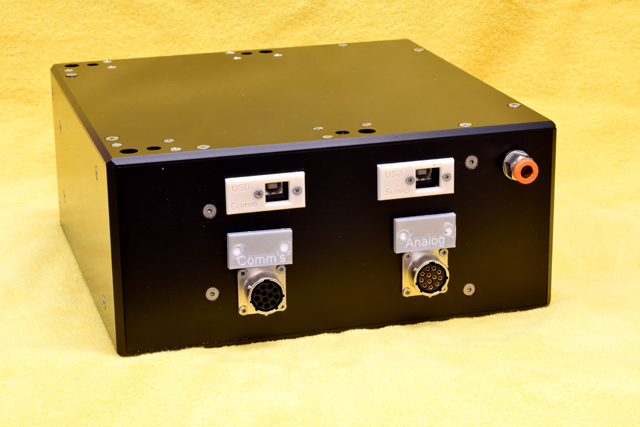

Backpanel connectors:

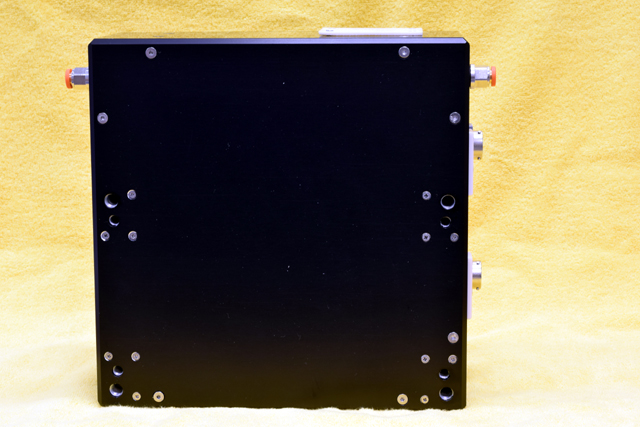

Mechanical mounting points, four M10 and four M8 on the top panel
